The Unix Operating System

The Unix operating system was developed at Bell Labs by researchers who withdrew from the development of the Multics operating system because it was too large and complicated. Unix was chosen as the name for the new operating system because it was an emasculated Multics.

The decision to write Unix in the C programming language was controversial because programmers at the time thought that the execuation speed penalty of a high level language would make it run too slowly. However, writing it in C made it much easier to port to different computers. The ease with which it can be ported and modified has made its descendants the dominate operating systems of the early twenty first century. Unix's decendants include OSX, iOS, Linux, and Android, Unix's challengers in the 1970's were IBM operating systems, whose only wide-spread descendant is Windows.

Unix Architecture

Operating systems encapsulate computer hardward in software to make the hardware easier to use. It provides a common interface to the hardward and makes the hardware easier to use.

Unix divides the operating system into the kernel and the system's software. The kernel encapsulates the hardware, providing an common interface. It has priviledged access to the hardware: any other program that needs to access the hardware must do so through the operating system. By restricting other programs from using the hardware directly, the Unix kernel can ensure common access from all other applications.

System software runs in user space. Unlike the kernel, it does not have priviledged access to the hardware. Indeed, the primary difference between systems software and other programs is that it comes packaged with the Unix operating systems. Most of the Unix commands you will use are actually system software running in user space.

Figure 1 shows a diagram of the Unix operating system. The hardware is drawn at the center of the diagram surrounded by the kernel. The kernel is, in turn, surrounded by the system software which contains many of the common Unix commands.

The Terminal

Though most Unixes have applications with a Graphical User Interface (GUI) the most common way to interact with Unix is through a terminal. Windows also has a terminal interface called

Unix Commands

The shell is an important Unix system program. The shell accepts commands typed into the terminal and executes them. It executes two types of commands: internal and external. Internal commands are built into the shell. External commands are other programs in user space that the shell initiates in their own process. Generally internal commands execute faster than external commands, but the difference is small on modern computers.

Unix commands follow this format:

command option(s) filename(s)

Unix used white space (tab, space) to separate fields and line feeds to separate records. A command is a single record, which the shell interprets as a request for an action. Each option is specified by a letter or string of letters possibly followed by another string of letters. Each filename is interpreted as an operand to the command.

For example, the cat will display the content of a file on the screen. For example, if we have a file called RomeoAndJuliet that contains the Shakespeare's Romeo and Julliet. We can print it out on the screen using the command:

cat RomeoAndJuliet

Our terminal will show us: The result of printing Romeo and
Juliet using cat

The problem is that the file is scrolling off the top of the file. We can use the option "-n" to number the lines so we can see how man there are. That is, we use the command

cat -n RomeoAndJuliet

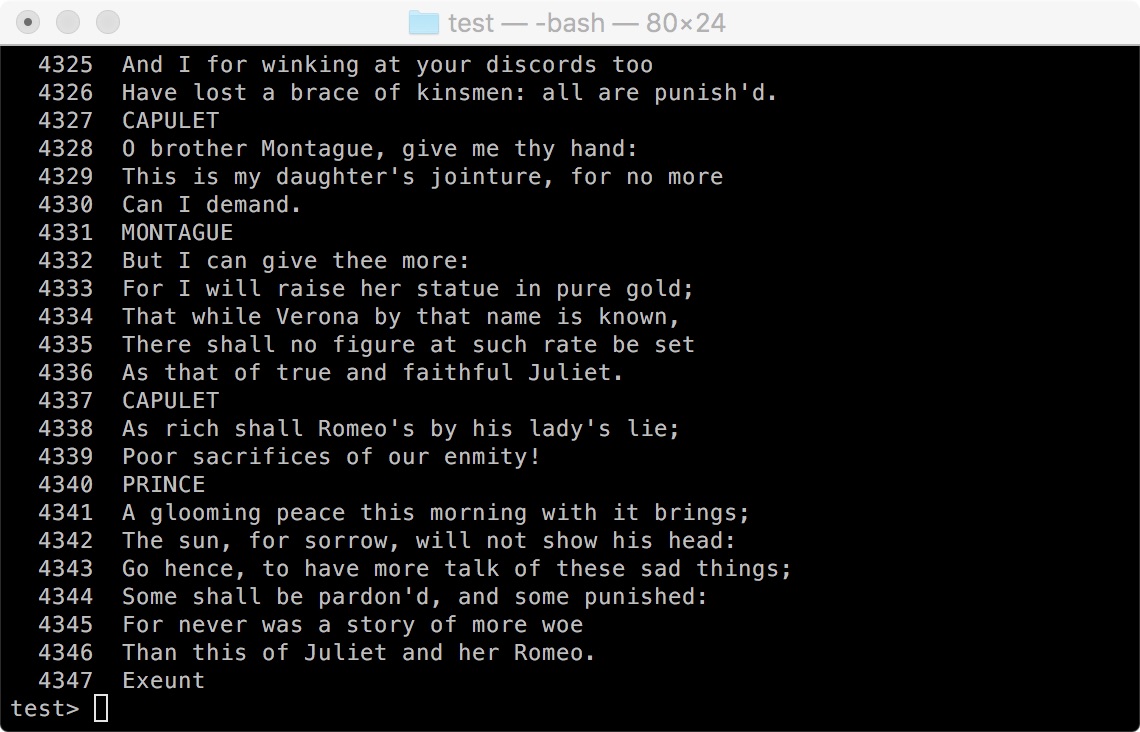

The results of using cat -n on
Romeo and Juliet

Now we can see that there are 4347 lines in the file.

Most Unix commands have more options that anyone can remember. Fortunately, there is a command man that shows all of the options. To find out all of the options for cat, type

man cat

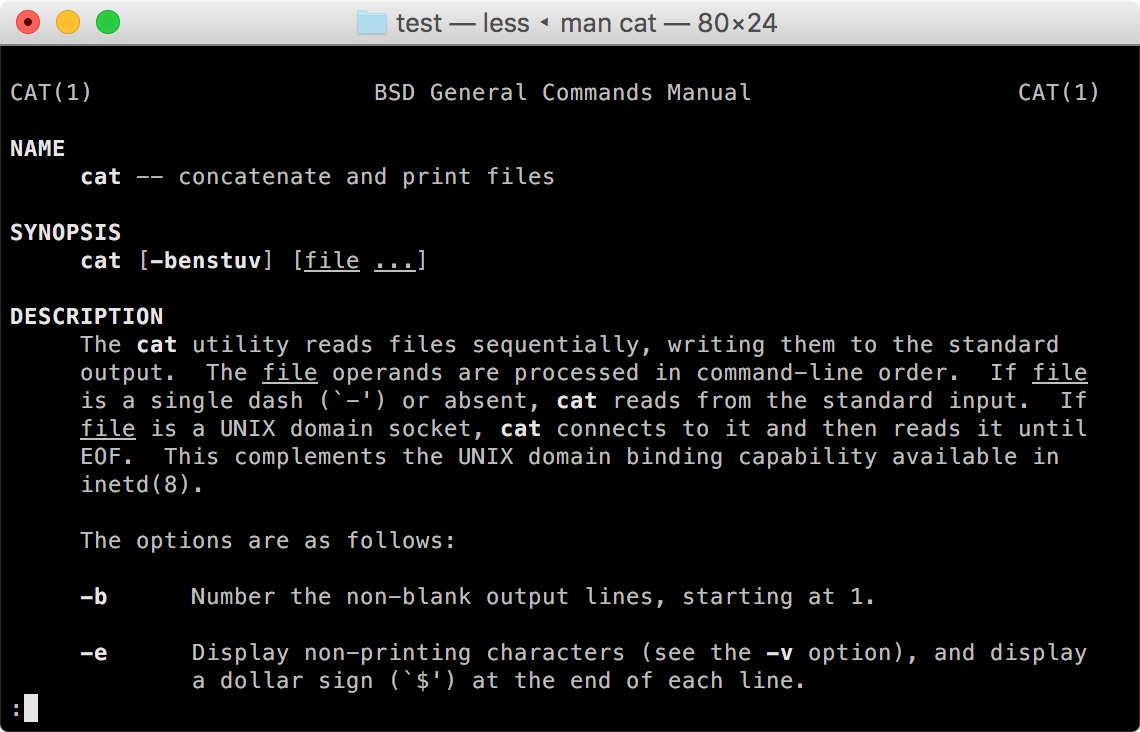

And, fortunately, the results of typing man do no scroll off the screen. Instead, a single page is displayed. At the bottom of the screen man displays a colon. If you type a space, the next page is displayed; if you type a carriage return (enter or return) the next line is displayed. If you type 'b', the previous page is displayed. If you type 'q' the the man command terminates. The first page of man cat

The options start with a '-', to distinguish them from the filenames. If you supply cat with multiple filenames, the content of all of the files display on the screen. For example, Lets create two files: one, called file1 containing "This is the first file." and the second, called file2 containing "This is the second file." When you type cat file1 file2you will see the following: The result of cat
file1 file2

Unix Files and Directories

The string file1 names a file. This name refers to the sequence of character "This is the first file.", stored in the computer. All files have names, and they reside in directories. Directories contain files and other directories. Directories may not contain themselves of directories than contain themselves, so they form a structure like a family tree. The root of the directory structures is the ultimate ancestor of all of the other directoreis. The root's name is "/".

The command ls shows the contents of a directory, like the command cat shows the contents of a file. For example, to see the contents of the root type

ls /

Some of the directories ls will list are: bin, boot, dev, etc, and home. The bin directory contains the programs that make up the ring around the Unix kernel. For example, you will find ls in the /bin directory. This file contains the instructions to make the computer list the contents of a directory.

Notice that the directory containing the Unix system programs in specifiec as /bin. This designation is called an absolute directory name because it specifies the route it starts at the common ancestor of all files, the root. Because directories form a structure like a family tree, starting at the root always specifies a unique file. In computer science, the structure in which nodes are attached only to parent nodes, all of which trace back to the root, are called trees. The Unix directory structure forms a tree.
